Automatic Silicon Steel Sheet Slitting Machine

Product Overview

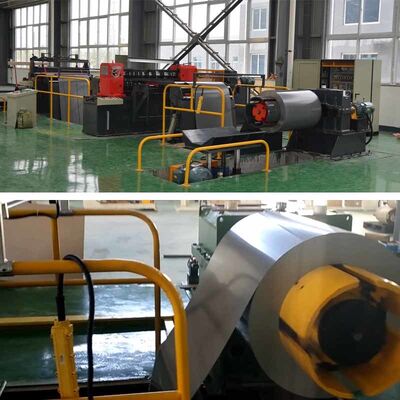

The ZJX1250 Automatic Core Slitting Machine is a heavy-duty, professional solution engineered for the high-precision longitudinal cutting of silicon steel sheets.

This high-performance slitting line is primarily utilized to process wide silicon steel coils into multi-blank strips of varying widths. These precision-slit strips are essential raw materials for manufacturing transformer core components, including outer legs, center legs, upper yokes, and lower yokes. Featuring advanced automation and a user-friendly interface, the ZJX1250 significantly boosts production efficiency while ensuring flawless edge quality.

Key Features & Advantages

• High-Efficiency Multi-Slitting: Equipped with 6 sets of premium cutters as standard, the system can slit up to 5 strips simultaneously in a single pass.

• Scalable and Flexible Tooling: The number of cutters can be easily increased or adjusted upon request to produce narrower strips and accommodate diverse production needs.

• Variable Speed Control: The slitting speed is fully adjustable, allowing operators to optimize throughput based on material thickness and operational requirements.

• Superior Edge Quality: Delivers clean cuts with a minimal burr height of ≤0.02 mm, preserving the magnetic properties of the silicon steel.

• Robust Automation: Engineered for high automation, minimizing manual labor from coil loading to final rewinding, ensuring maximum safety and uptime.

System Configuration & Main Components

The ZJX1250 silicon steel slitting line integrates 8 heavy-duty modules for a seamless workflow:

1. Loading & Unloading Coil Car (Trolley): For safe and efficient heavy coil handling.

2. Decoiler (Uncoiler): Securely holds and feeds the master steel coils.

3. Material Receiver Platform: Ensures smooth initial guiding of the sheet.

4. Movable Guide Device: Aligns the sheet precisely before entering the slitting head.

5. Precision Slitting Device: High-accuracy cutter shaft assembly for precise strip widths.

6. Recoiler / Winder: Tightly recoils the slit strips into neat, individual coils.

7. Hydraulic Station & Pneumatic System: Provides powerful and stable pressure for heavy-duty operations.

8. Electrical Control Cabinet & Operator Console: Centralized PLC system for seamless line synchronization.

Technical Specifications

Note: The specifications listed below represent our standard ZJX1250 configuration. Custom modifications regarding capacity, speed, and cutter configurations are available to match your specific production standards.
