Transformer Coiling Machine Automatic Coil Winding Machine

1 SET
MOQ
Dapat dinegosiasikan
harga
Transformer Coiling Machine Automatic Coil Winding Machine
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
nama: Mesin berliku kumparan otomatis
Kekuatan Berputar: 4KW
Kecepatan Putar: 0 ~ 160rpm
Kawat konduktor: kawat datar atau kawat bulat
Sistem Pengendalian: PLC
Modus tampilan: Layar sentuh
Kontrol Ketegangan: Pneumatik
Arah Berliku: Maju/Mundur
Diameter kawat: 0,3 ~ 5,0mm
Warna mesin: Seperti yang diminta
Menyoroti:

automatic transformer coiling machine

,

coil winding machine with warranty

,

automatic coil winding machine for transformers
Informasi dasar
Tempat asal: Cina
Nama merek: STT
Sertifikasi: CE
Nomor model: ZPX800
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Pengepakan Layak Laut
Waktu pengiriman: 35 hari
Syarat-syarat pembayaran: T/T,L/C
Menyediakan kemampuan: 100 set per tahun
Deskripsi Produk
Transformer Coiling Machine Automatic Coil Winding Machine
Automatic Coil Winding Machine ZPX800 is a specialized wire coiling equipment designed for manufacturing wire coils used in transformers and other similar products. This kind of coil winding  machine can wind both copper wire and aluminum wire, featuring a servo-driven wire guide for automated wire laying. Equipped with PLC and HMI controls, the coil winding machine features slow starting, smooth operation, high torque, and user-friendly functionality.
Key Features
• Processes both copper wire and aluminum wire
• Servo-driven automatic wire guide system
• PLC and HMI
• Slow start function for precise operation
• High torque performance
• User-friendly operation and programming
Technical Specifications
Parameter Specification
Center Height 900mm
Winding Shaft Size 40x40mm
Maximum Winding Width 800mm
Winding Motor 4kw
Winding Speed 0 ~ 160 rpm
Speed Regulation Stepless
Max. Flat Wire Size 5X12mm
Round Wire Diameter Ø0.3mm ~ Ø5.0mm
Maximum Wound Coil OD. Ø800mm
Maximum Capacity 700kg
Counting Mode 5-digit counting
Counting Range 0 ~ 9999.9
Product Images
Transformer Coiling Machine Automatic Coil Winding Machine 0

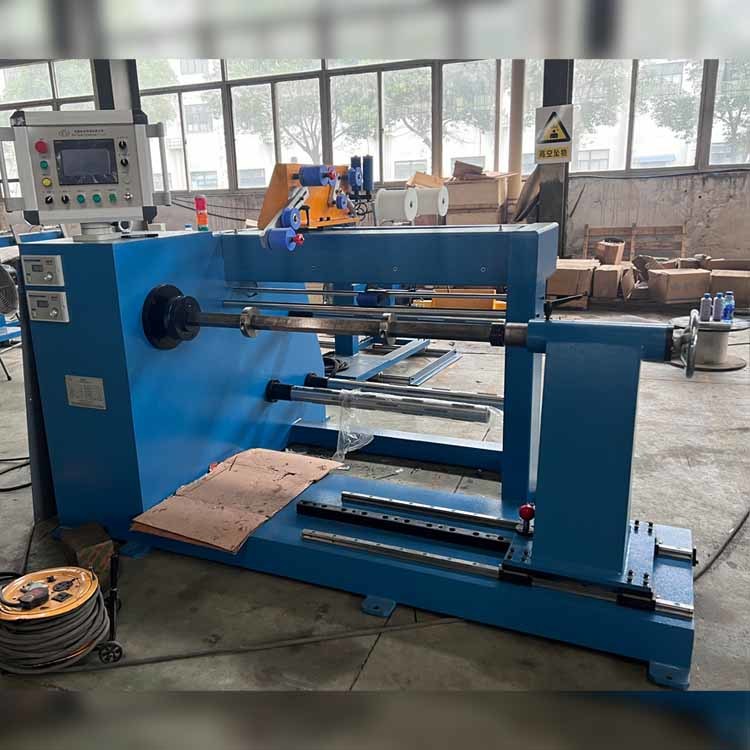

Fig 1: Automatic coil winding machine ZPX800's front view
Transformer Coiling Machine Automatic Coil Winding Machine 1

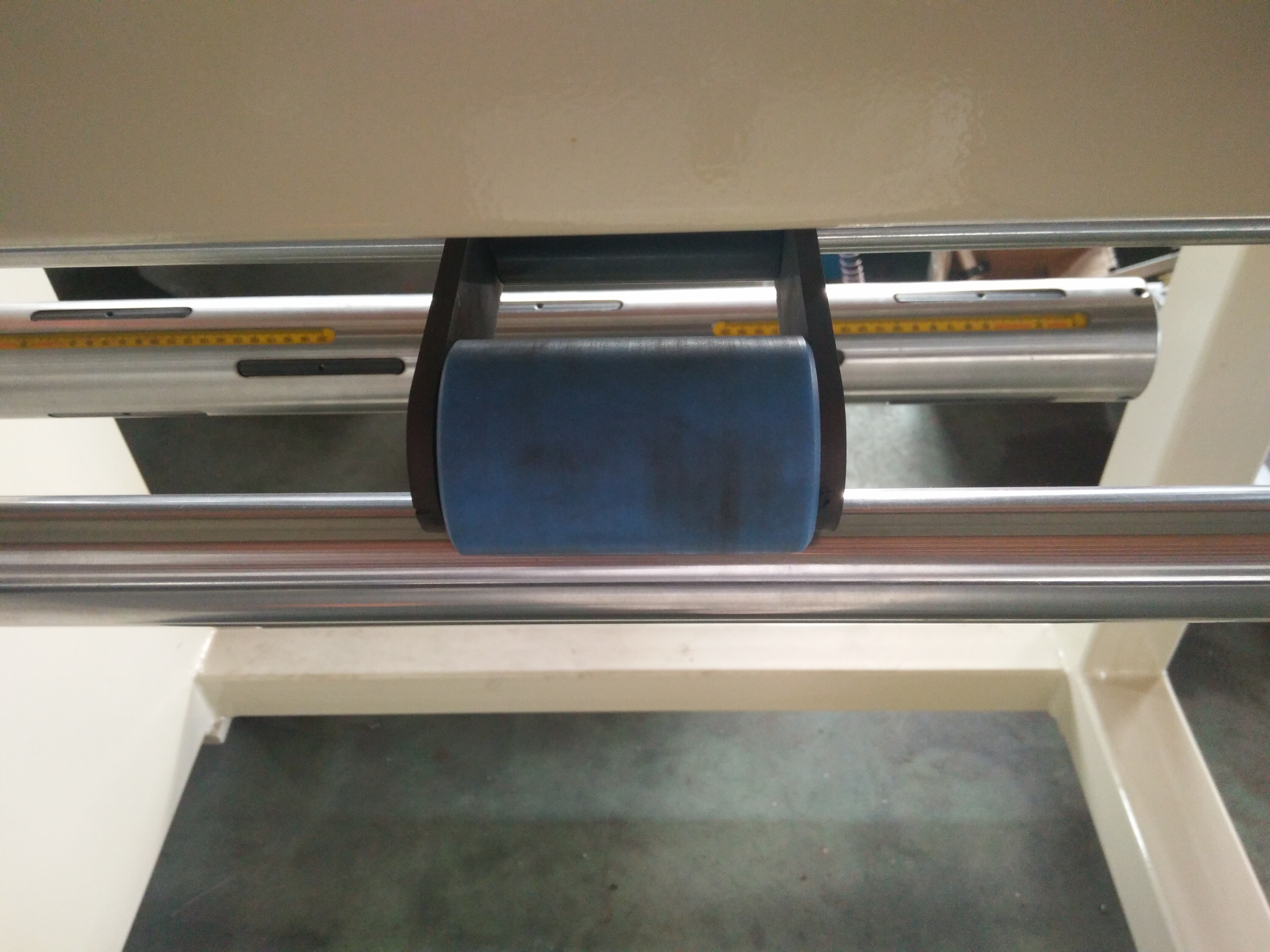

Fig 2: Automatic coil winding machine ZPX800's wire guide
